PTE-120 Model Train Elevator

Motorized Vertical Lift System – 120 cm (47.2") Platform for Z to HO/OO Scales

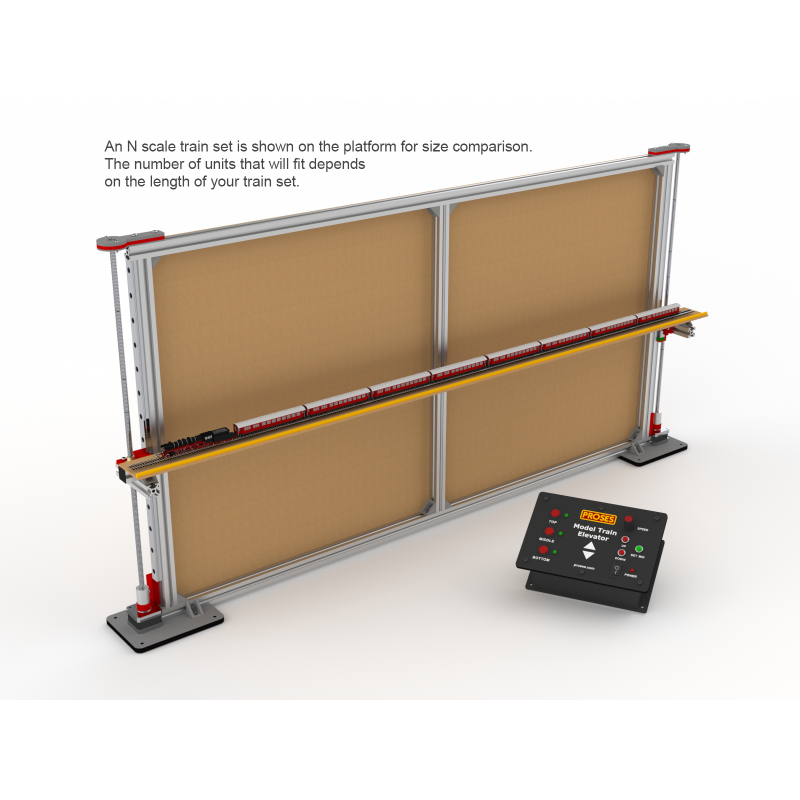

The PTE-120 by Proses is a high-precision vertical train elevator designed to transport model trains between layout levels with exceptional stability and smoothness.
With a 120 cm (47.2") platform, it supports full-length train sets from Z to HO/OO scales — depending on the number of units — and provides an ideal solution where traditional ramps or helices are not practical.
For longer trains, we recommend the larger PTE-165 (1650 mm / 65") version.

Technical Specifications:

• Platform Length: 1200 mm (47.2 inches)
• Compatible Scales: Z, N, TT, HO, OO, or any scale that fits to platform size
• Vertical Travel Distance: Approx. 420 mm (16.5 inches)
• Unit Height: Approx. 600 mm (23.6 inches)
• Lift Mechanism:
  • Driven by high-torque stepper motors for accurate, reliable motion control
  • Precision lead screw ensures smooth vertical travel
  • Dual linear guide rails provide stable, vibration-free movement and perfect alignment
• Control System: Microcontroller-based logic with EEPROM memory
• Level Management:
  • Top and bottom levels set via mechanical limit switches
  • Middle level is programmable and stored in memory
• Operation Modes:
  • Manual up/down buttons for setup and fine adjustment
  • Call buttons for automatic travel to saved levels
• Safety Features: Integrated limit switches, over-travel protection
• Construction: Robust aluminum frame for long-term precision and durability
• Power Requirement: 12V DC regulated
• Included: 12V power supply

Applications:

• Vertical access for multi-deck layouts
• Staging yard transitions
• Space-saving solution for modular or shelf-based designs

Customization Options:

• PTE-165 version available for longer trains (1650 mm / 65")
• Custom lift heights and platform lengths available upon request

Physical Dimensions:

• Footprint: Approx. 1300 mm x 150 mm (51.2" x 5.9")
• Unit Height: Approx. 600 mm (23.6")

With its stepper motor drive, precision lead screw, and linear guide rail system, the PTE-120 ensures safe, quiet, and repeatable vertical train movement—trusted by modelers worldwide.

🔧 Manufactured by Proses Smart Hobby Tools – Since 1983

🛠️ Please allow approximately 15–20 days for shipping, as this item is manufactured to order.
